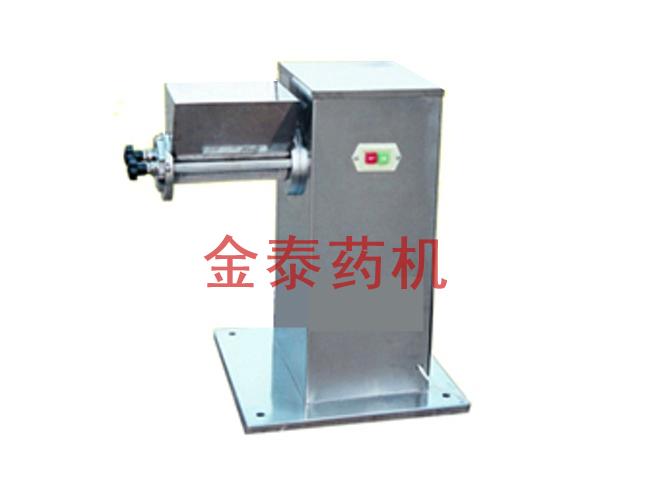

搖擺顆粒機
本機用以將潮濕的粉料研制成所需的顆粒，也可將塊狀的干料粉碎到所需的顆粒。主要特點是篩網裝拆簡易，還可適當調節松緊，七角滾筒拆卸方便，容易清洗。機械傳動系統全部封閉在機體內，并附有潤滑系統，整機運轉平穩。
YK160型旋轉的七角滾筒的速度可以調節，外表油漆平整適合一般使用。
YK160B是根據藥品生產GMP的要求而設計制造的新型機，整機外型全用優質不銹鋼封閉。使整機外型整潔美觀，特別是篩網采用金屬絲或不銹鋼板網，使顆粒的質量和經濟效率有較大提高。
This machine is used for forming the required granules from mosist ower material，or for crushing rotor also into granules in required size.Its main featres are:the sieve can be removed and remounted easily,itstension is also adjustable.The rotor also can be removed and remounted easilly,its tension is also adjustable.The rotor also can be removed and cleaned conveniently.The driving mechanism is totally encllosed in the machine body and its lubricantion system.Makes the machine work smoothly.
Type YK160 the speed of its rotor can be adjusted during operating，its surface is painted for universal usage.
Type YK160B,a new type is designed in accordance with GMP standard，its surface is made of high quality stainless steel and locks nice.Especilly the metal and stainless steel screen mesh improves the pellets’quality.
技術參數 technical parameters
|
型號 |
YK60 |
YK90 |
YKl60 A |
YKl60B |
|
滾筒直徑 (mm) |
60 |
90 |
160 |
160 |
|
滾筒有效長度 (mm) |
184 |
270 |
360 |
360 |
|
滾筒轉速 (r／min) |
46 |
50 |
55 |
55 |
|
生產能力 (kg／h) |
20-30 |
100 |
200-300 |
200-300 |
|
料斗面尺寸 (L X W) |
212X209 |
300X250 |
430X410 |
415X380 |
|
電機功率 (kw) |
0.55 |
0.75 |
3 |
3 |
|
外形尺寸 (mm) |
450X450X550 |
750X460X840 |
960X750X1240 |
910X700X1200 |
|
機器重量 (kg) |
70 |
150 |
350 |
380 |
