重慶VH-30混合機
詳細介紹

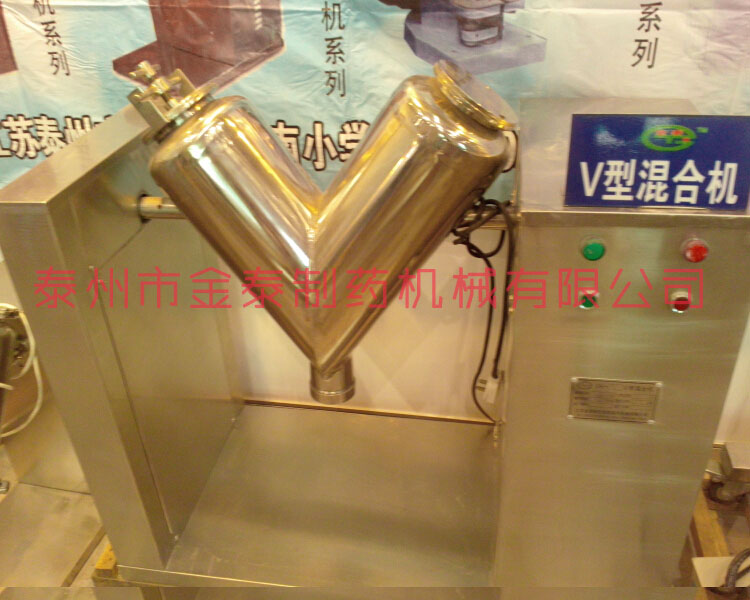

V型混合機（雙臂）
主要用途 Main application
本機適用于制藥、化工、食品等行業兩種以上干粉狀、顆粒狀物料的混和。該機混合筒結構獨特，混合效率高，無死角。采用不銹鋼材料制作，內外壁拋光處理，外形美觀，混合均勻，適用面寬，并能根據用戶的要求配套強制攪拌器，以適合較細的粉粒、塊狀，含有一定水分的物料混合之用。
This machine is suitable for mixing two or more kinds of dry powder or granule raw materials for pharmaceutical industry，chemical industry foodstuff and so on.The structure of this machine is unique.Its mixing efficiency is high and no dead coner.It is made of staineless steel.Its inner and outer wall is processed through polishing.Its apperance is beatury.Its mixing is uniform.Its scope of application is wide.The forced stirrer can also be equipped in order to meet the requirements of raw materials that contain fine powder，cake and certain moisture as requirements of users.
技術參數 Technical parameters
VH-30混合機
V型混合機（雙臂）
主要用途 Main application
本機適用于制藥、化工、食品等行業兩種以上干粉狀、顆粒狀物料的混和。該機混合筒結構獨特，混合效率高，無死角。采用不銹鋼材料制作，內外壁拋光處理，外形美觀，混合均勻，適用面寬，并能根據用戶的要求配套強制攪拌器，以適合較細的粉粒、塊狀，含有一定水分的物料混合之用。
This machine is suitable for mixing two or more kinds of dry powder or granule raw materials for pharmaceutical industry，chemical industry foodstuff and so on.The structure of this machine is unique.Its mixing efficiency is high and no dead coner.It is made of staineless steel.Its inner and outer wall is processed through polishing.Its apperance is beatury.Its mixing is uniform.Its scope of application is wide.The forced stirrer can also be equipped in order to meet the requirements of raw materials that contain fine powder，cake and certain moisture as requirements of users.
技術參數 Technical parameters
|
規格 |
桶體容積（L） |
工作容積（L） |
桶體轉速（r/min） |
電機功率（KW） |
外形尺寸（L×W×H） |
|
VH-14 |
14 |
5.6 |
20 |
0.75 |
900×380× 900 |
|
VH-20 |
20 |
8 |
20 |
1.1 |
1100×350× 900 |
|
VH-30 |
30 |
12 |
20 |
1.1 |
1300×380×1100 |
|
VH-50 |
50 |
20 |
20 |
1.5 |
1400×480× 1200 |
|
VH-100 |
100 |
40 |
15 |
1.5 |
1900×800×1190 |
